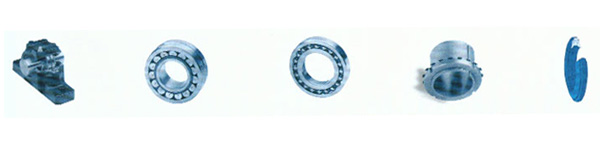

Master Bearings | ตารางเสื้อตุ๊กตาพลัมเมอร์บล็อค ตลับลูกปืน ปลอกปรับขนาดเพลา ซีล และแหวนกำหนดตำแหน่งที่ใช้ร่วมกัน |
เสื้อเบอร์ |
สำหรับเพลา |
ใช้กับตลับลูกปืน |
ปลอกปรับขนาดเพลา |
ซีลเบอร์
|
แหวนกำหนด ตำแหน่ง |
||
มม. |
นิ้ว |
รหัสสินค้า |
มม. |
นิ้ว |
|||
SNL 505 |
20 |
3/4 |
1205 EKTN9 |
H 205 |
HE 205 |
TNS 505 A,C G |
2X FRB 5/52 |
2205 EKTN9 |
H 305 |
HE 305 |
TNS 505 A,C G |
2X FRB 3.5/52 |
|||
22205 EK |
H 305 |
HE 305 |
TNS 505 A,C G |
2X FRB 3.5/52 |
|||
| SNL 506-605 | 20 | 3/4 | 1305 EKTN9 |
H 305 | HE 305 | TSN 605 A,C G | 2X FRB 7.5/62 |
| 25 | 15/16 | 1206 EKTN9 |
H 206 | HA 206 | TSN 506 A,C G | 2X FRB 8/62 |
|
2206 EKTN9 |
H 306 | HA 306 | TSN 506 A,C G | 2X FRB 6/62 |
|||
22206 EK |
H 306 | HA 306 | TSN 506 A,C G | 2X FRB 6/62 |
|||
| 1 | 1206 EKTN9 |
HE 206 | TSN 506 A,C G | 2X FRB 8/62 |
|||
2206 EKTN9 |
|
HE 306 |
TSN 506 A,C G | 2X FRB 6/62 |
|||
22206 EK |
HE 306 | TSN 506 A,C G | 2X FRB 6/62 |
||||
| SNL 507-606 | 25 | 15/16 | 1306 EKTN9 |
H 306 | HA 306 | TNS 606 A,C,G | 2X FRB 7.5/72 |
2306 K |
H 2306 | HA 2306 | TNS 606 A,C,G | 2X FRB 3.5/72 |
|||
| 1 | 1306 EKTN9 |
HE 306 | TNS 606 A,C,G | 2X FRB 7.5/72 |
|||
2306 K |
HE 2306 | TNS 606 A,C,G | 2X FRB 3.5/72 |
||||
| 30 | 1.1/8 | 1207 EKTN9 |
H 207 | HS 207 | TNS 507 A,C,G | 2X FRB 8.5/72 |
|
2207 EKTN9 |
H 307 | HS 307 | TNS 507 A,C,G | 2X FRB 5.5/72 |
|||
22207 EK |
H 307 |
HS 307 |
TNS 507 A,C,G |
2X FRB 5.5/72 |
|||
| 1.3/16 | 1207 EKTN9 |
HA 207 | TNS 507 A,C,G | 2X FRB 8.5/72 |
|||
2207 EKTN9 |
HA 307 | TNS 507 A,C,G | 2X FRB 5.5/72 |
||||
22207 EK |
HA 307 | TNS 507 A,C,G | 2X FRB 5.5/72 |
||||
| SNL 508-606 | 30 | 1.1/8 | 1307 EKTN9 |
H 307 | HS 307 | TNS 607 A,C,G | 2X FRB 9/80 |
2307 EKTN9 |
H 2307 | HS 2307 | TNS 607 A,C,G | 2X FRB 4/80 |
|||
| 1.3/16 | 1307 EKTN9 |
HA 307 | TNS 607 A,C,G | 2X FRB 9/80 |
|||
2307 EKTN9 |
HA 2307 | TNS 607 A,C,G | 2X FRB 4/80 |
||||
| 35 | 1.1/4 | 1208 EKTN9 |
H 208 |
HE 208 |
TSN 508 A,C,G |
2X FRB 10.5/80 |
|
2208 EKTN9 |
H 308 | HE 308 | TSN 508 A,C,G | 2X FRB 8/80 |
|||
22208 EK |
H 308 | HE 308 | TSN 508 A,C,G | 2X FRB 8/80 |
|||
| 1.3/8 | 1208 EKTN9 |
HS 208 | TSN 508 A,C,G | 2X FRB 10.5/80 |
|||
2208 EKTN9 |
HS 308 | TSN 508 A,C,G | 2X FRB 8/80 |
||||
22208 EK |
HS 308 | TSN 508 A,C,G | 2X FRB 8/80 |
||||
| SNL 509 | 40 | 14.7/16 | 1209 EKTN9 |
H 209 | HA 209 | TNS 509 A,C,G | 2X FRB 5.5/85 |
2209 EKTN9 |
H 309 | HA 309 | TNS 509 A,C,G | 2X FRB 3.5/85 |
|||
22209 EK |
H 309 | HA 309 | TNS 509 A,C,G | 2X FRB 3.5/85 |
|||
| 1.1/2 | 1209 EKTN9 |
HE 209 | TNS 509 A,C,G | 2X FRB 5.5/85 |
|||
2209 EKTN9 |
HE 309 | TNS 509 A,C,G | 2X FRB 3.5/85 |
||||
22209 EK |
HE 309 | TNS 509 A,C,G | 2X FRB 3.5/85 |
||||
| SNL 510-608 | 35 | 1.1/4 | 1308 EKTN9 |
H 308 | HE 308 | TNS 510 A,C,G | 2X FRB 10.5/90 |
2308 EKTN9 |
H 2308 | HE 2308 | TNS 608 A,C,G | 2X FRB 4/90 |
|||
21308 CCK |
H 308 | HE 308 | TNS 608 A,C,G | 2X FRB 9/90 |
|||
22308 EK |
H 2308 | HE 2308 | TNS 608 A,C,G | 2X FRB 4/90 |
|||
1210 EKTN9 |
H 210 | HE 210 | TNS 510 A,C,G | 2X FRB 10.5/90 |
|||
2210 EKTN9 |
H 310 | HE 310 | TNS 510 A,C,G | 2X FRB 9/90 |
|||
22210 EK |
H 310 | HE 310 | TNS 510 A,C,G | 2X FRB 9/90 |
|||
1210 EKTN9 |
HA 210 | TNS 510 A,C,G | 2X FRB 10.5/90 |
||||
2210 EKTN9 |
HA 310 | TNS 510 A,C,G | 2X FRB 9/90 |
||||
22210 EK |
HA 310 | TNS 510 A,C,G | 2X FRB 9/90 |
||||
