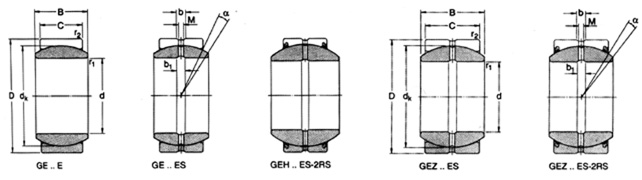

| ¡Òº¼ÔÇâ¤é§ SPHERICAL PLAIN BEARINGS |
ÃËÑÊÊÔ¹¤éÒ |
¢¹Ò´ |
ÃËÑÊÊÔ¹¤éÒ |
¢¹Ò´ |
||||
d |
D |
B |
d |
D |
B |
||
GE |
GE200ES |
200 | 290 | 130 | |||
GE4E |
4 | 12 | 5 | GE200ES/C3 |
200 | 290 | 130 |
GE5E |
5 | 14 | 6 | GE200ES-2RS |
200 | 290 | 130 |
GE6C |
6 | 14 | 6 | GE200TXA-2RS |
200 | 290 | 130 |
GE6E |
6 | 14 | 6 | GE220ES-2RS |
220 | 320 | 135 |
GE8C |
8 | 16 | 8 | GE220ES-2RS/C3 |
220 | 320 | 135 |
GE8E |
8 | 16 | 8 | GE220TXA-2RS |
220 | 320 | 135 |
GE10C |
10 | 19 | 9 | GE240ES-2RS |
240 | 340 | 140 |
GE10E |
10 | 19 | 9 | GE240ES-2RS/C3 |
240 | 340 | 140 |
GE12C |
12 | 22 | 10 | GE240TXA-2RS |
240 | 340 | 140 |
GE12E |
12 | 22 | 10 | GE260ES-2RS |
260 | 370 | 150 |
GE12TGR |
12 | 22 | 10 | GE260ES-2RS/C3 |
260 | 370 | 150 |
GE15C |
15 | 26 | 12 | GE260TXA-2RS |
260 | 370 | 150 |
GE15ES |
15 | 26 | 12 | GE280ES-2RS |
280 | 400 | 155 |
GE15ES-2RS |
15 | 26 | 12 | GE280TXA-2RS |
280 | 400 | 155 |
GE15TGR |
15 | 26 | 12 | GEH |
|||
GE16ES |
16 | 30 | 14 | GEH10C |
10 | 22 | 12 |
GE17C |
17 | 30 | 14 | GEH12C |
12 | 26 | 15 |
GE17ES |
17 | 30 | 14 | GEH15C |
15 | 30 | 16 |
GE17ES-2RS |
17 | 30 | 14 | GEH17C |
17 | 35 | 20 |
GE17TGR |
17 | 30 | 14 | GEH20C |
20 | 42 | 25 |
GE20C |
20 | 35 | 16 | GEH20ES-2RS |
20 | 42 | 25 |
GE20ES |
20 | 35 | 16 | GEH25C |
25 | 47 | 28 |
GE20ES-2RS |
20 | 35 | 16 | GEH25ES-2RS |
25 | 47 | 28 |
GE20TXE-2RS |
20 | 35 | 16 | GEH30ES |
30 | 55 | 32 |
GE20TXG3E |
20 | 35 | 16 | GEH30ES-2RS |
30 | 55 | 32 |
GE25C |
25 | 42 | 20 | GEH35ES-2RS |
35 | 62 | 35 |
GE25ES |
25 | 42 | 20 | GEH40ES-2RS |
40 | 68 | 40 |
GE25ES-2RS |
25 | 42 | 20 | GEH45ES-2RS |
45 | 75 | 43 |
GE30C |
30 | 47 | 22 | GEH50ES-2RS |
50 | 90 | 56 |
GE30ES |
30 | 47 | 22 | GEH60ES-2RS |
60 | 105 | 63 |
GE30ES-2RS |
30 | 47 | 22 | GEH70ES-2RS |
70 | 120 | 70 |
GE30TXG3E-2LS |
30 | 47 | 22 | GEH80ES-2RS |
80 | 130 | 75 |
GE35ES |
35 | 55 | 25 | GEH90ES-2RS |
90 | 150 | 85 |
GE35ES-2RS |
35 | 55 | 25 | GEH100ES-2RS |
100 | 160 | 85 |
GE35TXG3E-2LS |
35 | 55 | 25 | GEH110ES-2RS |
110 | 180 | 100 |
GE40ES |
40 | 62 | 28 | GEH120ES-2RS |
120 | 210 | 115 |
GE40ES-2RS |
40 | 62 | 28 | GEZ |
|||
GE40TXG3E-2LS |
40 | 62 | 28 | GEZ008ES |
1/2" | 7/8" | 7/16" |
GE45ES |
45 | 68 | 32 | GEZ010ES |
5/8" | 1 1/16" | 35/64" |
GE45ES-2RS |
45 | 68 | 32 | GEZ012ES |
3/4" | 1 1/4" | 21/32" |
GE45TXG3E-2LS |
45 | 68 | 32 | GEZ012ES-2RS |
3/4" | 1 1/4" | 21/32" |
GE50ES |
50 | 75 | 35 | GEZ014ES |
7/8" | 1 7/16" | |
GE50CS/3 |
50 | 75 | 35 | GEZ100ES |
1" | 1 5/8" | 7/8" |
GE50ES-2RS |
50 | 75 | 35 | GEZ100ES-2RS |
1" | 1 5/8" | 7/8" |
GE50TXG3E-2LS |
50 | 75 | 35 | GEZ104ES |
1 1/4" | 2" | 1 3/32" |
GE60ES |
60 | 90 | 44 | GEZ104ES-2RS |
1 1/4" | 2" | 1 3/32" |
GE60ES-2RS |
60 | 90 | 44 | GEZ106ES |
1 3/8" | 2 3/16" | 1 3/16" |
GE60TXG3E-2LS |
60 | 90 | 44 | GEZ106ES-2RS |
1 3/8" | 2 3/16" | 1 3/16" |
GE70ES |
70 | 105 | 49 | GEZ108ES |
1 1/2" | 2 7/16" | 1 5/16" |
GE70ES-2RS |
70 | 105 | 49 | GEZ108ES-2RS |
1 1/2" | 2 7/16" | 1 5/16" |
GE70TXG3A-2LS |
70 | 105 | 49 | GEZ112ES |
1 3/4" | 2 13/16" | 1 17/32" |
GE80ES |
80 | 120 | 55 | GEZ112ES-2RS |
1 3/4' | 2 13/16" | 1 17/32" |
GE80-2RS |
80 | 120 | 55 | GEZ200ES |
2" | 3 3/16' | 1 3/4' |
GE80TXG3A-2LS |
80 | 120 | 55 | GEZ200ES-2RS0 |
2" | 3 3/16" | 1 3/4" |
GE90ES |
90 | 130 | 60 | GEZ204ES |
2 1/4" | 3 9/16" | 1 31/32" |
GE90ES/C3 |
90 | 130 | 60 | GEZ204ES-2RS |
2 1/4" | 3 9/16" | 1 31/32" |
GE90ES-2RS |
90 | 130 | 60 | GEZ208ES |
2 1/4" | 3 15/16" | 2 3/16" |
GE100ES |
100 | 150 | 70 | GEZ208ES-2RS |
2 1/4' | 3 15/16 | 2 3/16" |
GE100ES-2RS |
100 | 150 | 70 | GEZ212ES |
2 3/4' | 4 3/8" | 2 13/32" |
GE100TXA-2LS |
100 | 150 | 70 | GES212ES-2RS |
2 3/4" | 4 3/8" | 2 13/32" |
GE110ES |
110 | 160 | 70 | GEZ300ES |
3" | 4 3/4" | 2 5/8" |
GE110ES-2RS |
110 | 160 | 70 | GEZ300ES-2RS |
3' | 4 3/4" | 2 5/8" |
GE110TXA-2LS |
110 | 160 | 70 | GEZ304ES-2RS |
3 1/4" | 5 1/8" | 2 27/32" |
GE120ES |
120 | 180 | 85 | GEZ308ES |
3 1/2" | 5 1/2" | 3 1/16" |
GE120ES-2RS |
120 | 180 | 85 | GEZ308ES-2RS |
3 1/2" | 5 1/2" | 3 1/16" |
GE120TXA-2LS |
120 | 180 | 85 | GEZ400ES |
4" | 6 1/4" | 3 1/2" |
GE140ES |
140 | 210 | 90 | GEZ400ES-2RS |
4" | 6 1/4" | 3 1/2" |
GE140ES-2RS |
140 | 210 | 90 | GEZ408ES |
4 1/2" | 7" | 3 15/16" |
GE140TZA-2RS |
140 | 210 | 90 | GEZ408ES-2RS |
4 1/2" | 7" | 3 15/16" |
GE160ES |
160 | 230 | 105 | GEZ500ES |
5" | 7 3/4" | 4 3/8" |
GE160ES-2RS |
160 | 230 | 105 | GEZ500ES-2RS |
5" | 7 3/4" | 4 3/8" |
GE160TXA-2RS |
160 | 230 | 105 | GEZ600ES-2RS |
6" | 8 3/4" | 4 3/4' |
GE180ES |
180 | 260 | 105 | ||||
GE180ES-2RS |
180 | 260 | 105 | ||||
GE180TXA-2RS |
180 | 260 | 105 | ||||
