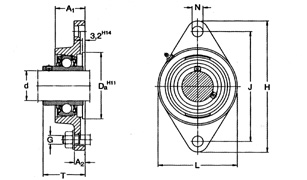

| ชุดตลับลูกปืนวาย พร้อมเสื้อ แบบหน้าแปลนรูปไข่ Y-BEARINGS FLANGED UNITS WITH CAST HOUSING |
รหัสสินค้า |
ประกอบด้วย |
ขนาด |
||||
Japanese NO. |
เสื้อเบอร์ |
ตลับลูกปืนเบอร์ |
d |
J (มม.) |
L (มม.) |
T (มม.) |
FYTB (ขนาด d เป็นนิ้ว) |
||||||
FYTB 3/4 TF UCFL 204-3/4" |
FYTB 504 M | YAR 204-012-2F | 3/4" | 90.0 | 60.5 | 37.3 |
FYTB 1. TF UCFL 205-1" |
FYTB 505 M | YAR 205-100-2F | 1" | 99.0 | 70 | 38.8 |
FYTB 1.1/4 TF UCFL 207-1.1/4" |
FYTB 507 M | YAR 207-104-2F | 1 1/4" | 130.0 | 96 | 46.4 |
FYTB 1.1/2 TF UCFL 208-1.1/2" |
FYTB 508 M | YAR 208-108-2F | 1 1/2" | 143.5 | 102 | 54.2 |
FYTB 1.1/4 TF UCFL 209-1.1/4" |
FYTB 509 M | YAR 209-112-2F | 1 3/4" | 148.5 | 111 | 54.2 |
FYTB (ขนาด d เป็นมิลลิเมตร) |
||||||
FYTB 12 TF UCFL 203 |
FYTB 503 M | YAR 203/12-2F | 12 | 76.5 | 57 | 32.9 |
FYTB 15 FM |
FYTB 503 M | YET 203/15 | 15 | 76.5 | 57 | 39.1 |
FYTB 15 TF UCFL 203 |
FYTB 503 M | YAR 203/15-2F | 15 | 76.5 | 57 | 32.9 |
FYTB 17 TF UCFL 203 |
FYTB 503 M | YAR 203-2F | 17 | 76.5 | 57 | 32.9 |
FYTB 20 FM |
FYTB 504 M | YET 204 | 20 | 90.0 | 60.5 | 42.5 |
FYTB 20 TF UCFL 204 |
FYTB 504 M | YAR 204-2F | 20 | 90.0 | 60.5 | 37.3 |
FYTB 25 FM |
FYTB 505 M | YET 205 | 25 | 99.0 | 70 | 42.5 |
FYTB 25 TF UCFL 205 |
FYTB 505 M | YAR 205-2F | 25 | 99.0 | 70 | 38.8 |
FYTB 25 WF |
FYTB 505 M | YEL 205-2F | 25 | 99.0 | 70 | 45.9 |
FYTB 30 FM |
FYTB 506 M | YET 206 | 30 | 116.5 | 83 | 46.7 |
FYTB 30 TF UCFL 206 |
FYTB 506 M | YAR 206-2F | 30 | 116.5 | 83 | 42.2 |
FYTB 30 WF |
FYTB 506 M | YEL 206-2F | 30 | 116.5 | 83 | 50.1 |
FYTB 35 FM |
FYTB 507 M | YET 207 | 35 | 130.0 | 96 | 50.4 |
FYTB 35 TF UCFL 207 |
FYTB 507 M | YAR 207-2F | 35 | 130.0 | 96 | 46.4 |
FYTB 40 FM |
FYTB 508 M | YET 208 | 40 | 143.5 | 102 | 56.7 |
FYTB 40 TF UCFL 208 |
FYTB 508 M | YAR 208-2F | 40 | 143.5 | 102 | 54.2 |
FYTB 40 WF |
FYTB 508 M | YEL 208-2F | 40 | 143.5 | 102 | 58.9 |
FYTB 45 FM |
FYTB 509 M | YET 209 | 45 | 148.5 | 111 | 56.7 |
FYTB 45 TF UCFL 209 |
FYTB 509 M | YAR 209-2F | 45 | 148.5 | 111 | 54.2 |
FYTB 45 WF |
FYTB 509 M | YEL 209-2F | 45 | 148.5 | 111 | 58.9 |
FYTB 50 FM |
FYTB 510 M | YET 210 | 50 | 157.0 | 116 | 60.7 |
FYTB 50 TF UCFL 210 |
FYTB 510 M | YAR 210-2F | 50 | 157.0 | 116 | 60.6 |
