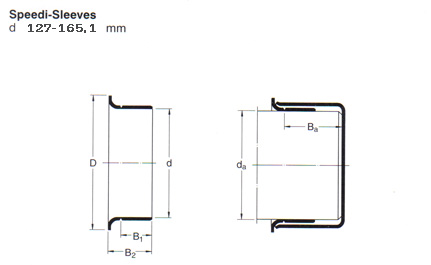

| Shaft diameter | Sleeve Dimensions | Designation | |||||
| da | d | D | B1 | B2 | Ba 1) | ||
| min | max | +,- 1,6 | +,- 0,8 | +,- 0,8 | |||
mm /in |
mm /in |
- | |||||
| 126,95 | 127,15 | 127 | 137,2 | 13,7 | 17,3 | 36,5 | CR 99501 |
| 4,998 | 5,006 | 5,000 | 5,400 | 0,540 | 0,681 | 1,438 | |
| 127 | 137,2 | 17,5 | 22,2 | 36,5 | CR 99498 | ||
| 5,000 | 5,400 | 0,688 | 0,875 | 1,438 | |||
| 127 | 136,9 | 20,6 | 25,4 | 36,5 | CR 99499 | ||
| 5,000 | 5,390 | 0,813 | 1,000 | 1,438 | |||
| 129,79 | 130 | 129,9 | 139,5 | 19,1 | 23,8 | 30 | CR 99494 |
| 5,110 | 5,118 | 5,114 | 5,493 | 0,750 | 0,938 | 1,181 | |
| 129,97 | 130,18 | 130,18 | 139,5 | 22 | 25,3 | 32,5 | CR 99491 |
| 5,117 | 5,125 | 5,125 | 5,493 | 0,866 | 0,996 | 1,280 | |
| 130,05 | 130,25 | 130,18 | 139,7 | 20,6 | 25,4 | 31,8 | CR 99513 |
| 5,120 | 5,128 | 5,125 | 5,500 | 0,813 | 1,000 | 1,250 | |
| 133,25 | 133,45 | 133,35 | 141,2 | 20,6 | 25,4 | 31,8 | CR 9955 |
| 5,246 | 5,254 | 5,250 | 5,560 | 0,813 | 1,000 | 1,250 | |
| 134,8 | 135 | 134,95 | 145,7 | 20,5 | 25,4 | 31,8 | CR 99533 |
| 5,307 | 5,315 | 5,313 | 5,735 | 0,807 | 1,000 | 1,250 | |
| 136,43 | 136,63 | 136,53 | 149,2 | 20,6 | 15,4 | 31,8 | CR 99357 |
| 5,371 | 5,379 | 5,375 | 5,875 | 0,813 | 1,000 | 1,250 | |
| 138,03 | 138,23 | 138,13 | 146,1 | 38,1 | 49,9 | 47,6 | CR 99548 |
| 5,434 | 5,442 | 5,438 | 5,750 | 1,500 | 1,688 | 1,875 | |
| 138,99 | 139,19 | 139,09 | 149,9 | 14,3 | 19,1 | 31,3 | CR 99547 |
| 5,472 | 5,480 | 5,476 | 5,900 | 0,563 | 0,750 | 1,234 | |
| 139,65 | 139,85 | 139,7 | 150,8 | 13,2 | 17,9 | 31,8 | CR 99550 |
| 5,498 | 5,506 | 5,500 | 5,938 | 0,518 | 0,705 | 1,250 | |
| 139,7 | 150,8 | 20,6 | 25,4 | 31,8 | CR 99549 | ||
| 5,500 | 5,938 | 0,813 | 1,000 | 1,250 | |||
| 139,9 | 140,11 | 140 | 151 | 20,5 | 25,4 | 31,8 | CR 99552 |
| 5,508 | 5,516 | 5,512 | 5,945 | 0,807 | 1,000 | 1,250 | |
| 144,75 | 145 | 145 | 154,9 | 19,1 | 22,2 | 46 | CR 99571 |
| 5,699 | 5,709 | 5,709 | 6,100 | 0,750 | 0,875 | 1,812 | |
| 145,44 | 145,64 | 145,64 | 154,9 | 14,3 | 19,1 | 49,2 | CR 99562 |
| 5,726 | 5,734 | 5,734 | 6,100 | 0,563 | 0,750 | 1,938 | |
| 145,95 | 146,15 | 146,05 | 157 | 20,6 | 25,4 | 44,5 | CR 99575 |
| 5,746 | 5,754 | 5,750 | 6,180 | 0,813 | 1,000 | 1,750 | |
| 149,13 | 149,33 | 149,23 | 157,2 | 25,4 | 31,8 | 33,4 | CR 99587 |
| 5,871 | 5,879 | 5,875 | 6,188 | 1,000 | 1,250 | 1,313 | |
| 149,75 | 150,01 | 150 | 159 | 26 | 30 | 32,5 | CR 99595 |
| 5,896 | 5,906 | 5,905 | 6,260 | 1,024 | 1,181 | 1,280 | |
| 150,73 | 150,93 | 150,83 | 161,9 | 25,4 | 28,6 | 47,6 | CR 99596 |
| 5,934 | 5,942 | 5,938 | 6,375 | 1,000 | 1,125 | 1,875 | |
| 152,27 | 152,47 | 152,4 | 161,5 | 12,7 | 19,1 | 44,5 | CR 99601 |
| 5,995 | 6,003 | 6,000 | 6,360 | 0,500 | 0,750 | 1,750 | |
| 152,4 | 161,9 | 25,4 | 31,8 | 44,5 | CR 99599 | ||
| 6,000 | 6,375 | 1,000 | 1,250 | 1,750 | |||
| 153,87 | 154,13 | 154 | 161,9 | 26 | 30 | 33 | CR 99605 |
| 6,058 | 6,068 | 6,063 | 6,375 | 1,024 | 1,181 | 1,299 | |
| 154,74 | 155 | 154,68 | 167 | 26 | 30 | 33 | CR 99606 |
| 6,092 | 6,102 | 6,097 | 6,575 | 1,024 | 1,181 | 1,299 | |
| 157,43 | 157,69 | 157,56 | 168,3 | 20,6 | 27 | 44,5 | CR 99260 |
| 6,198 | 6,208 | 6,203 | 6,625 | 0,813 | 1,063 | 1,750 | |
| 158,62 | 158,88 | 158,75 | 168,3 | 26,2 | 31,8 | 44,5 | CR 99625 |
| 6,425 | 6,255 | 6,250 | 6,625 | 1,031 | 1,250 | 1,750 | |
| 159,74 | 160 | 160 | 171,4 | 25,4 | 31,8 | 35 | CR 99630 |
| 6,289 | 6,299 | 6,299 | 6,750 | 1,000 | 1,250 | 1,375 | |
| 164,97 | 165,23 | 165,1 | 177,8 | 25,4 | 31,8 | 35 | CR 99650 |
| 6,495 | 6,505 | 6,500 | 7,000 | 1,000 | 1,250 | 1,375 | |
